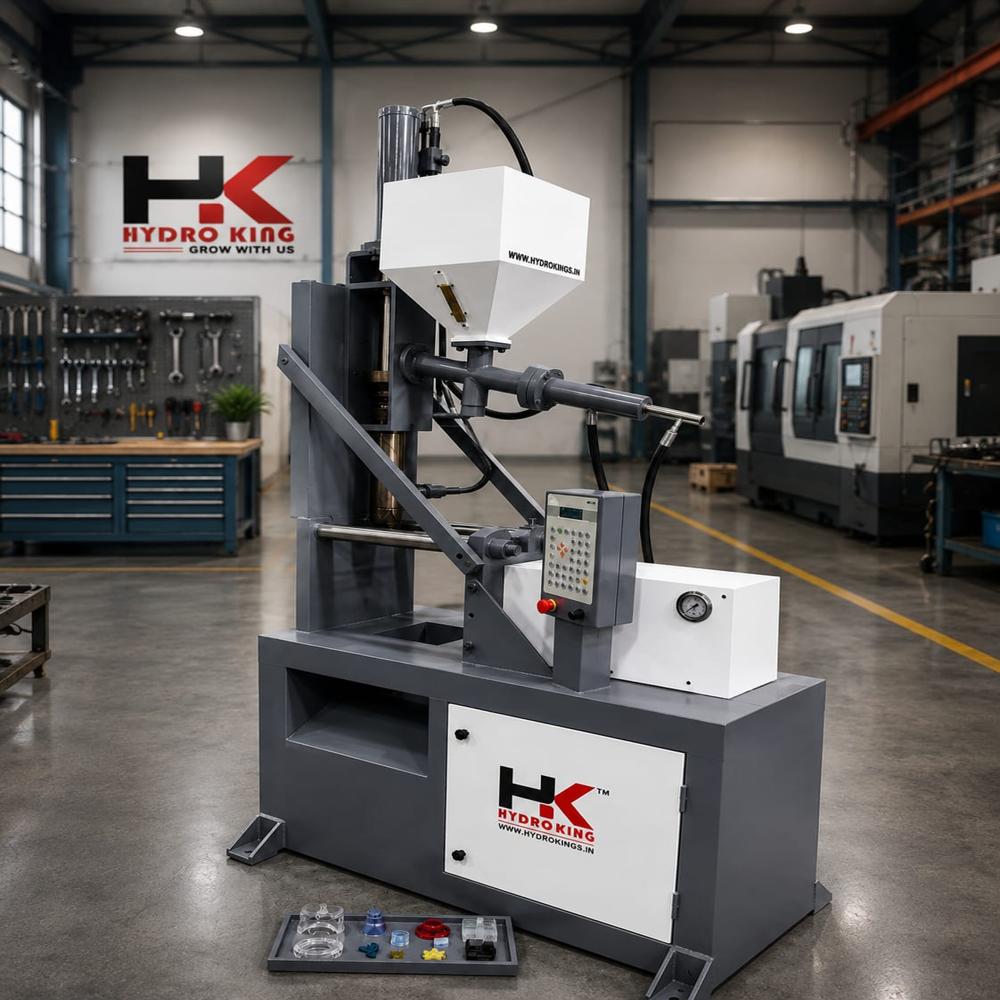

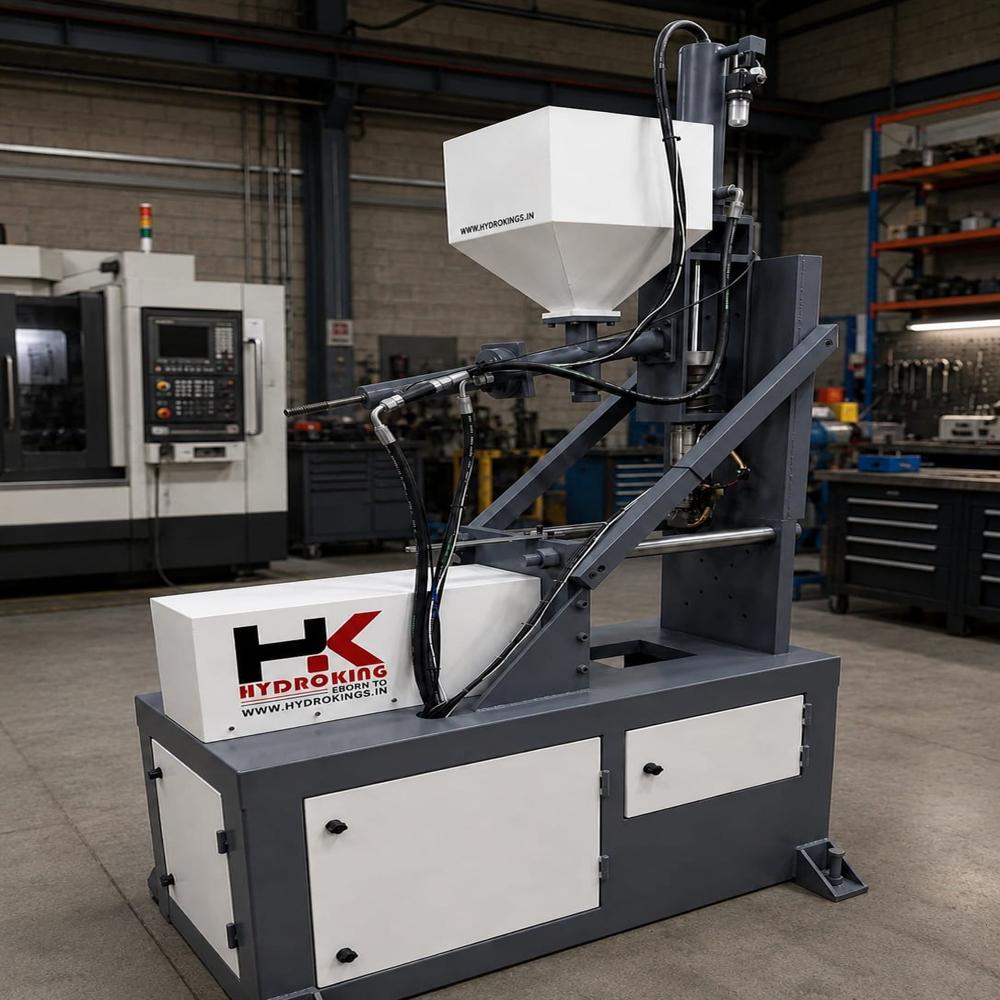

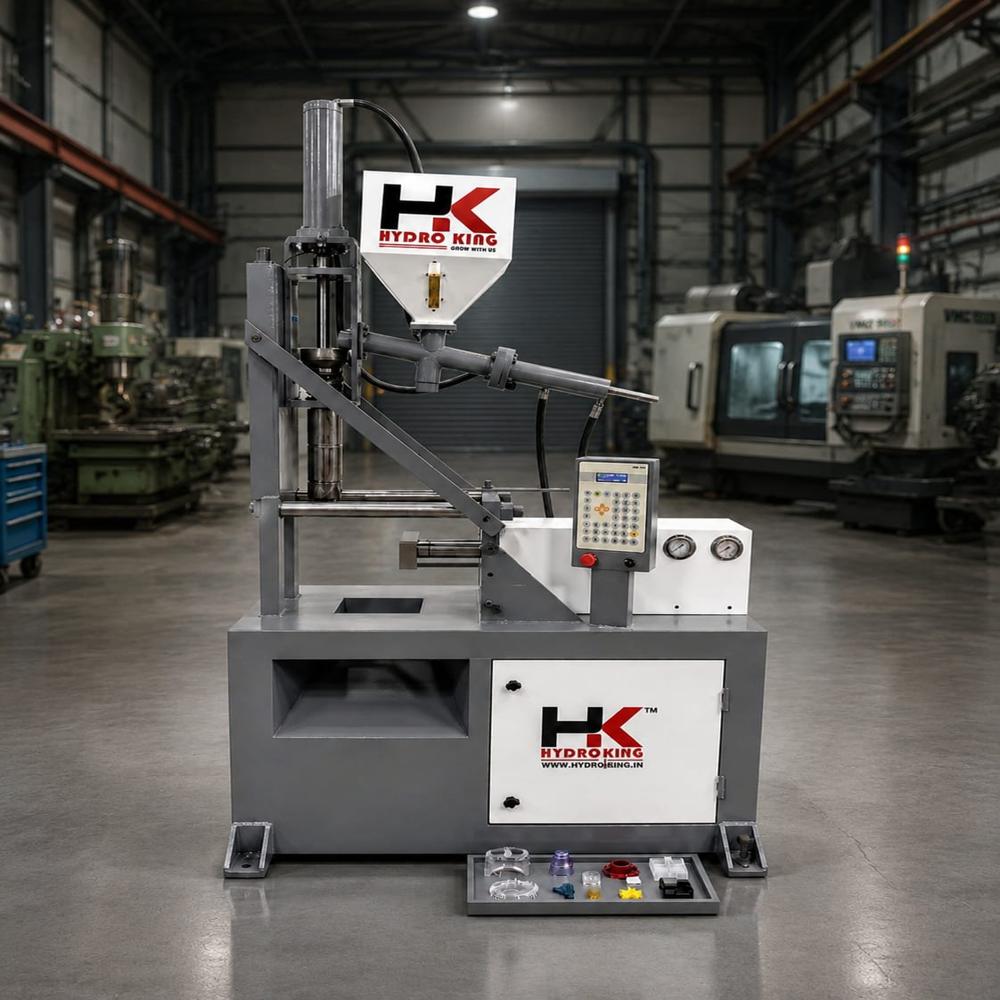

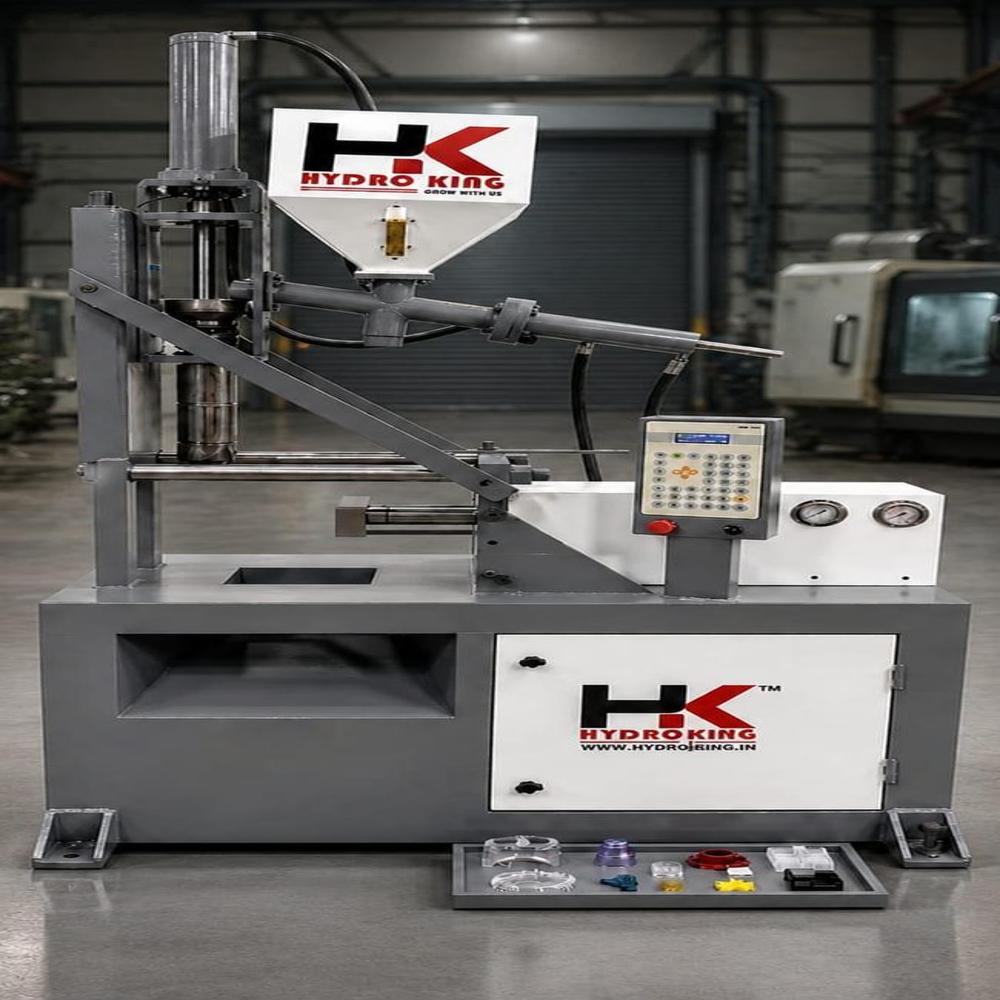

Fully Automatic Vertical Injection Moulding Machine

Send Inquiry

Request To Call Back

Fully Automatic Vertical Injection Moulding Machine

Price 300000.0 INR/ Ton

Get a Price/Quote

MOQ : 1 Ton

Fully Automatic Vertical Injection Moulding Machine Specification

Frequency
50 Hertz (HZ)

Mounting Type
FLOOR MOUNTED

Phase
THREE PHASE

Processor Type
INDUSTRIAL PROCESSOR

Application
PLASTIC PRODUCT MANUFACTURING

Warranty
12 MONTHS

Sensor Type
PRESSURE SENSOR

Cable Length
N/A Meter (m)

Connectivity Type
WIRED

Control Type
PLC CONTROL

Remote Control
Yes

IP Rating
IP54

Automation Grade
AUTOMATIC

Load Capacity
150 Tonne

Screen Size
7 Inch (in)

Drive Type
HYDRAULIC

Speed Range
0-180mm/s

Features
PLC CONTROL/ENERGY EFFICIENT

Weight
1200 Kilograms (kg)

Usage
PLASTIC INJECTION MOULDING

Material
MILD STEEL

Power
5500 Watt (w)

Size
STANDARD/HK2015

Height
2200 Millimeter (mm)

Temperature
300 Celsius (oC)

Product Type
VERTICAL INJECTION MOULDING MACHINE

Voltage
380 Volt (v)

Color
GREY&WHITE

Length
1800 Millimeter (mm)

Width
1200 Millimeter (mm)

Fully Automatic Vertical Injection Moulding Machine Trade Information

Minimum Order Quantity
1 Ton

Delivery Time
10 Days

About Fully Automatic Vertical Injection Moulding Machine

Technical Specifications

Machine Model

HK2015 Automatic

Machine Type

Vertical Plunger Type Injection Moulding Machine

Locking System

Ram Type Locking System

Plunger Diameter

40 mm

Injection Pressure

Maximum 7 Ton

Maximum Shot Weight

150 Gram

Plunger Stroke

300 mm

Temperature Zones

3 Zones

Hopper Capacity

15 kg

Clamping Force

20 Ton

Opening Force

Maximum 7 Ton

Distance Between Tie Bars

310 mm

Minimum Mould Height

100 mm

Maximum Mould Height

250 mm

Opening Stroke

400 mm

Nozzle Retraction Stroke

820 mm

Maximum Open Daylight

400 mm

Ejector Stroke

10100 mm

Injection Unit Slide Stroke

160 mm

Maximum Hydraulic Pressure

175 Bar

Pump Output

9 LPM

Hydraulic Oil Capacity

108 Litres

Pump Motor

Single Phase, 3 HP

Barrel Heating Power

2 KW

Total Electric Load

4.5 KW

Current Requirement

28 Amp

Machine Weight

Approximately 650 kg

Ejector Force

6 Ton

Machine Dimensions

3090 800 4040 mm

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Automatic Machine Category

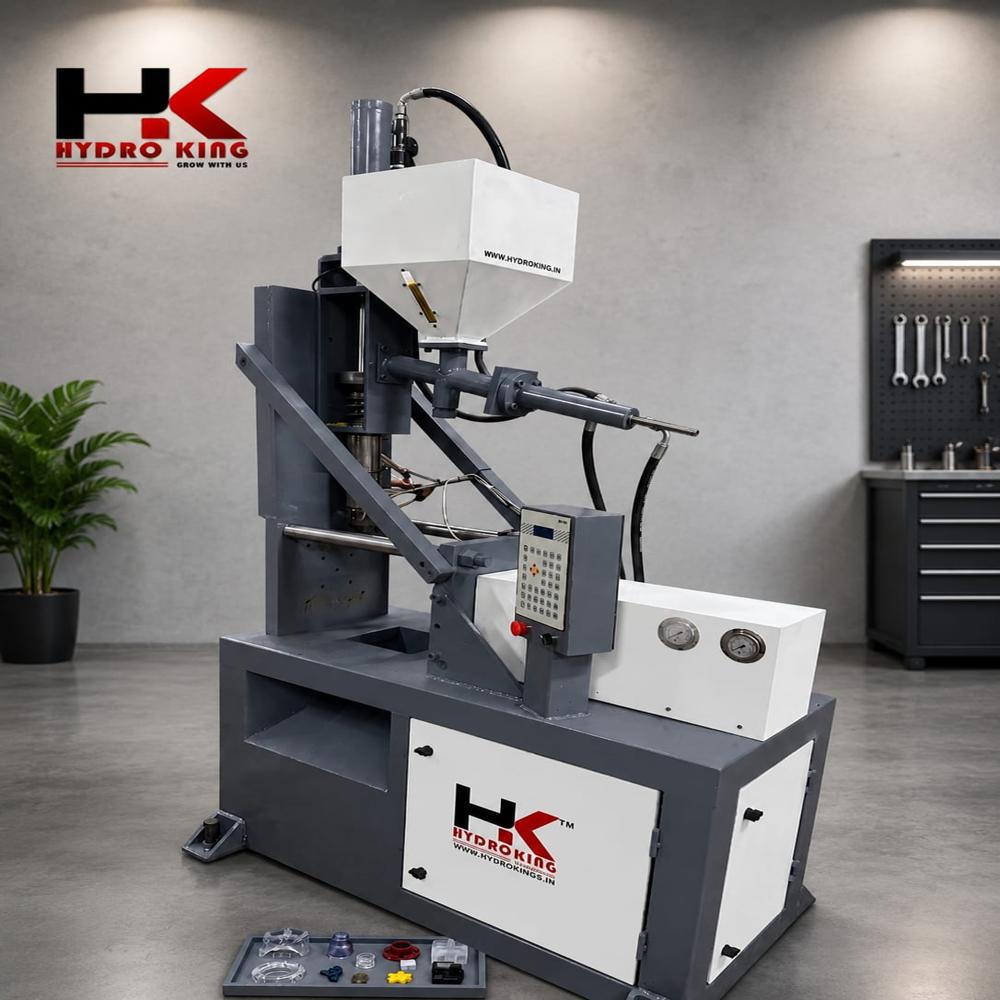

Vertical Injection Moulding Machine
