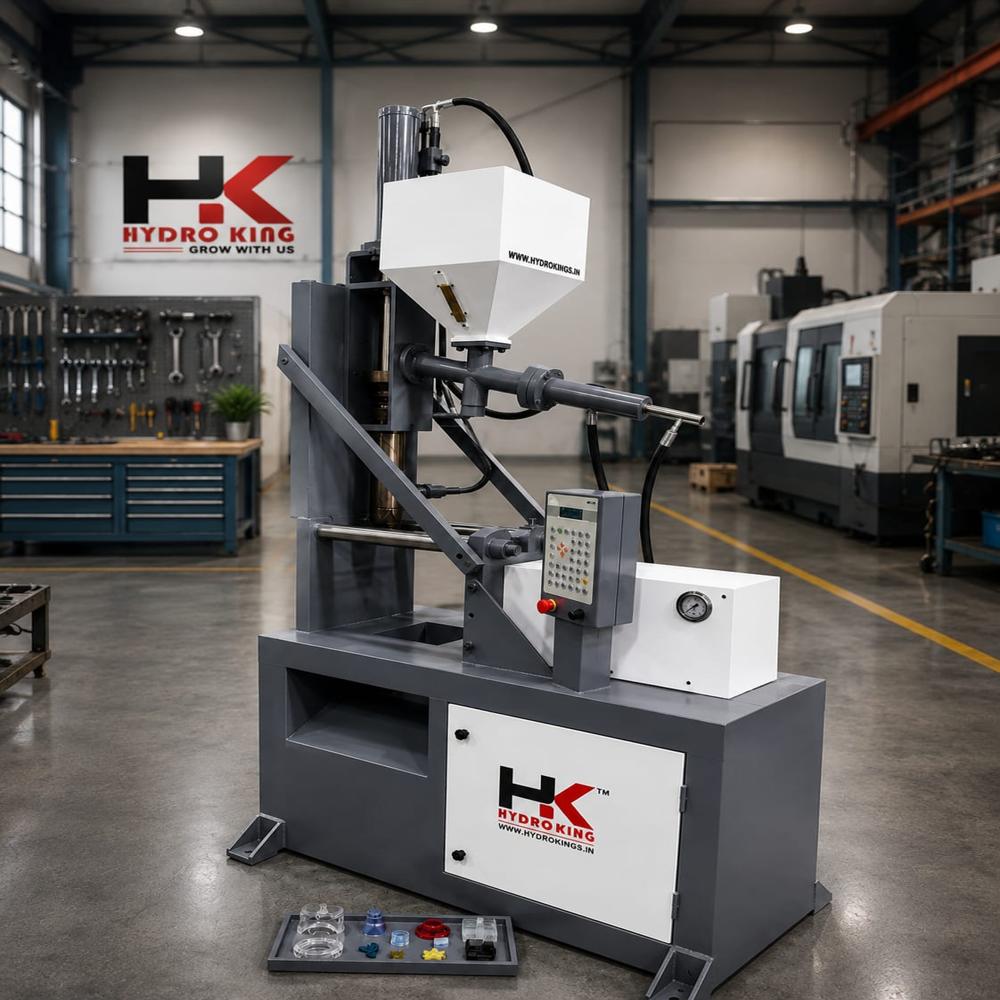

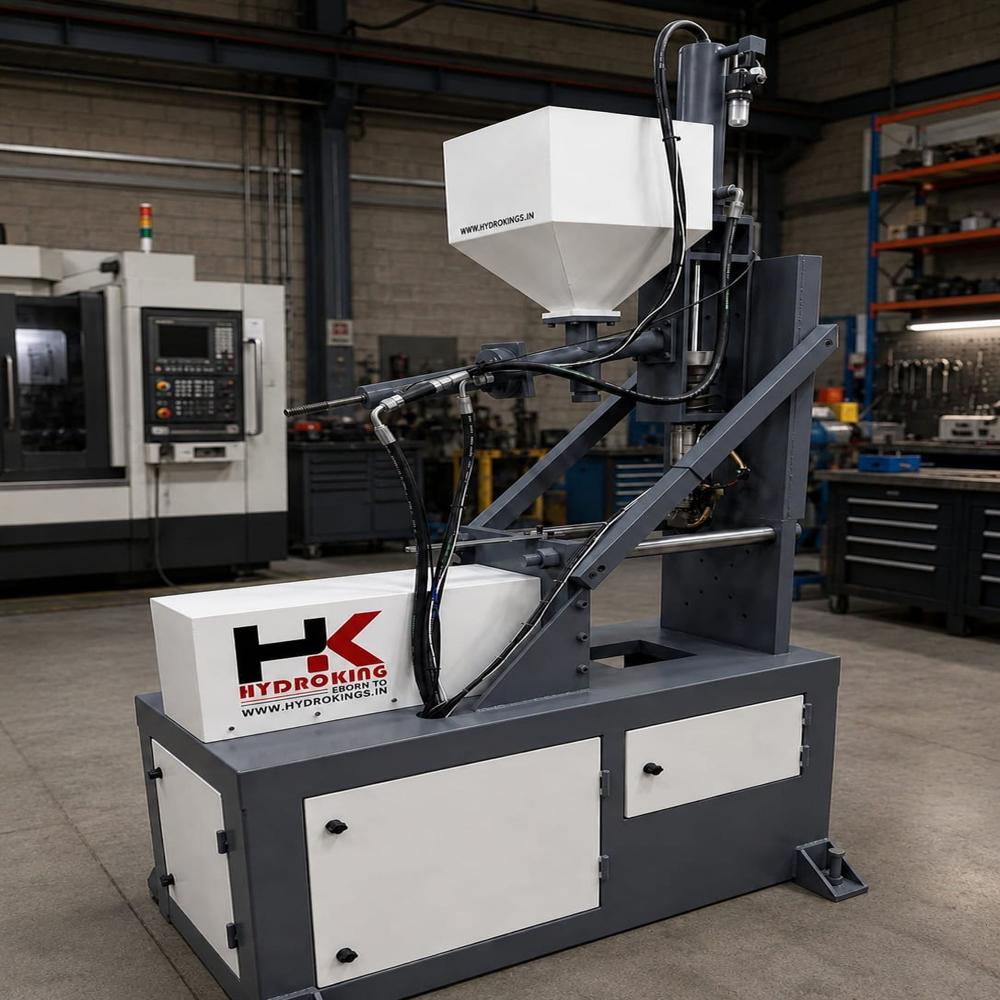

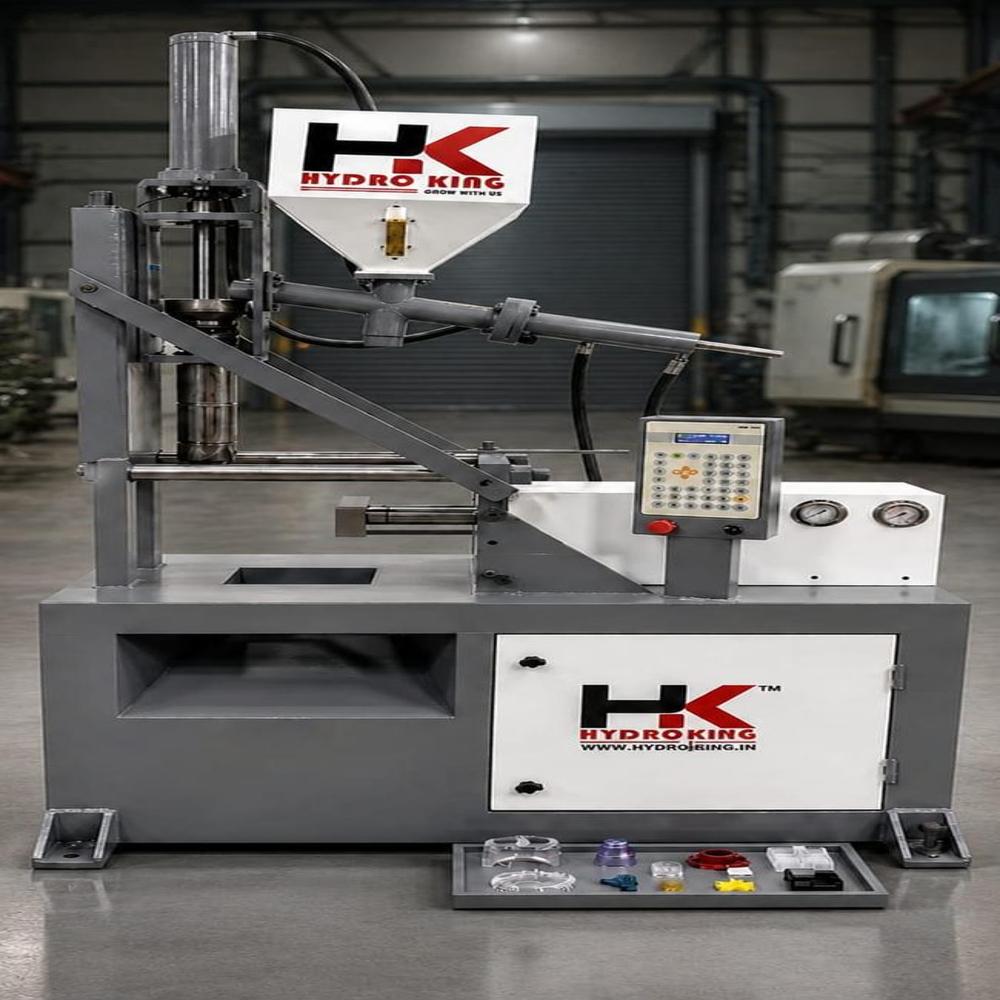

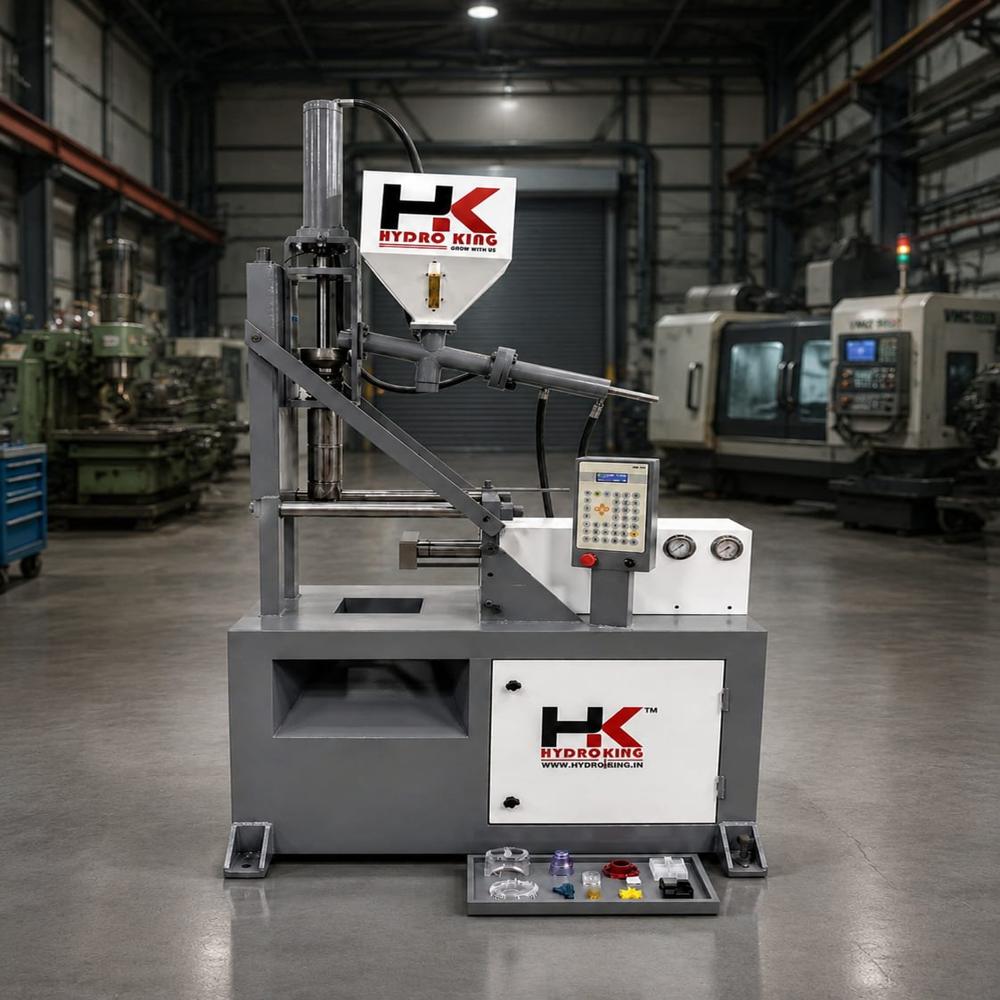

Send InquiryVERTICAL PLUNJER TYPE INJECTION MOULDING MACHINE
Price 350000.0 INR/ Piece
MOQ : 1 Ton
VERTICAL PLUNJER TYPE INJECTION MOULDING MACHINE Specification
- Drive Type
- HYDRAULIC
- Processor Type
- PLC
- Application
- PLASTIC INJECTION MOULDING MACHINE
- Warranty
- 12 MONTHS
- Frequency
- 50 Hertz (HZ)
- Screen Size
- 7 Inch (in)
- Mounting Type
- FLOOR MOUNTED
- Automation Grade
- AUTOMATIC
- IP Rating
- IP54
- Speed Range
- ADJUSTABLE INJECTION & CLAMPING SPEED
- Connectivity Type
- WIRED
- Remote Control
- Yes
- Features
- Automatic Operation, PLC Control, Energy Efficient, Heavy Duty Construction, Easy Maintenance, High Production Efficiency
- Sensor Type
- PROXIMITY SENSOR
- Load Capacity
- 150 Gram (g)
- Control Type
- PLC+HMI TOUCH SCREEN
- Phase
- SINGLE PHASE
- Weight
- 650 Kilograms (kg)
- Cable Length
- 2 Meter (m)
- Usage
- PLASTIC INJECTION MOULDING
- Material
- MILD STEEL
- Size
- 3090X800X4040mm
- Power
- 4.5 Watt (w)
- Height
- 4040 Millimeter (mm)
- Temperature
- 300 Celsius (oC)
- Voltage
- 230 Volt (v)
- Product Type
- VERTICAL PLUNGER TYPE & INJECTION MOULDING MACHINE
- Color
- GREY & WHITE
- Width
- 800 Millimeter (mm)
- Length
- 3090 Millimeter (mm)
VERTICAL PLUNJER TYPE INJECTION MOULDING MACHINE Trade Information
- Minimum Order Quantity
- 1 Ton
- Delivery Time
- 10 Days
About VERTICAL PLUNJER TYPE INJECTION MOULDING MACHINE
Technical Specifications
Machine Model
HK2015 Automatic
Machine Type
Vertical Plunger Type Injection Moulding Machine
Locking System
Ram Type Locking System
Plunger Diameter
40 mm
Injection Pressure
Maximum 7 Ton
Maximum Shot Weight
150 Gram
Plunger Stroke
300 mm
Temperature Zones
3 Zones
Hopper Capacity
15 kg
Clamping Force
20 Ton
Opening Force
Maximum 7 Ton
Distance Between Tie Bars
310 mm
Minimum Mould Height
100 mm
Maximum Mould Height
250 mm
Opening Stroke
400 mm
Nozzle Retraction Stroke
820 mm
Maximum Open Daylight
400 mm
Ejector Stroke
10100 mm
Injection Unit Slide Stroke
160 mm
Maximum Hydraulic Pressure
175 Bar
Pump Output
9 LPM
Hydraulic Oil Capacity
108 Litres
Pump Motor
Single Phase, 3 HP
Barrel Heating Power
2 KW
Total Electric Load
4.5 KW
Current Requirement
28 Amp
Machine Weight
Approximately 650 kg
Ejector Force
6 Ton
Machine Dimensions
3090 800 4040 mm
Benefits of HK2015 Automatic
High 20 Ton Clamping Force for stable and accurate moulding.
Produces parts up to 150 Gram Shot Weight, suitable for a wide range of plastic products.
Vertical Plunger Design provides reliable performance with easy maintenance.
Ram Type Locking System ensures strong and uniform mould clamping.
Maximum 7 Ton Injection Pressure enables smooth filling of mould cavities.
3 Temperature Control Zones provide precise heating for consistent product quality.
15 kg Hopper Capacity reduces frequent material refilling and improves productivity.
400 mm Opening Stroke allows easy mould loading and unloading.
Supports mould heights from 100 mm to 250 mm, making it compatible with various mould sizes.
6 Ton Ejector Force ensures quick and easy product ejection.
175 Bar Hydraulic Pressure delivers powerful and reliable machine operation.
108 Litre Hydraulic Oil Tank ensures efficient cooling and long operating hours.
Single Phase 3 HP Motor reduces electricity consumption and allows installation where three-phase power is unavailable.
Low Total Power Consumption (4.5 KW) helps reduce operating costs.
Compact vertical design saves valuable factory floor space.
Easy to operate with minimal operator training.
Suitable for continuous production with consistent output quality.
Strong construction ensures long service life and reduced maintenance costs.
Ideal for small and medium-scale plastic manufacturing businesses.
Suitable Products
This machine is ideal for manufacturing:
Electrical accessories
Cable clips
Wire connectors
PVC fittings
Bottle caps
Plastic knobs
Furniture accessories
Automotive plastic components
Industrial plastic parts
Toys
Medical plastic components
Packaging items
Household plastic products
Custom moulded plastic components
