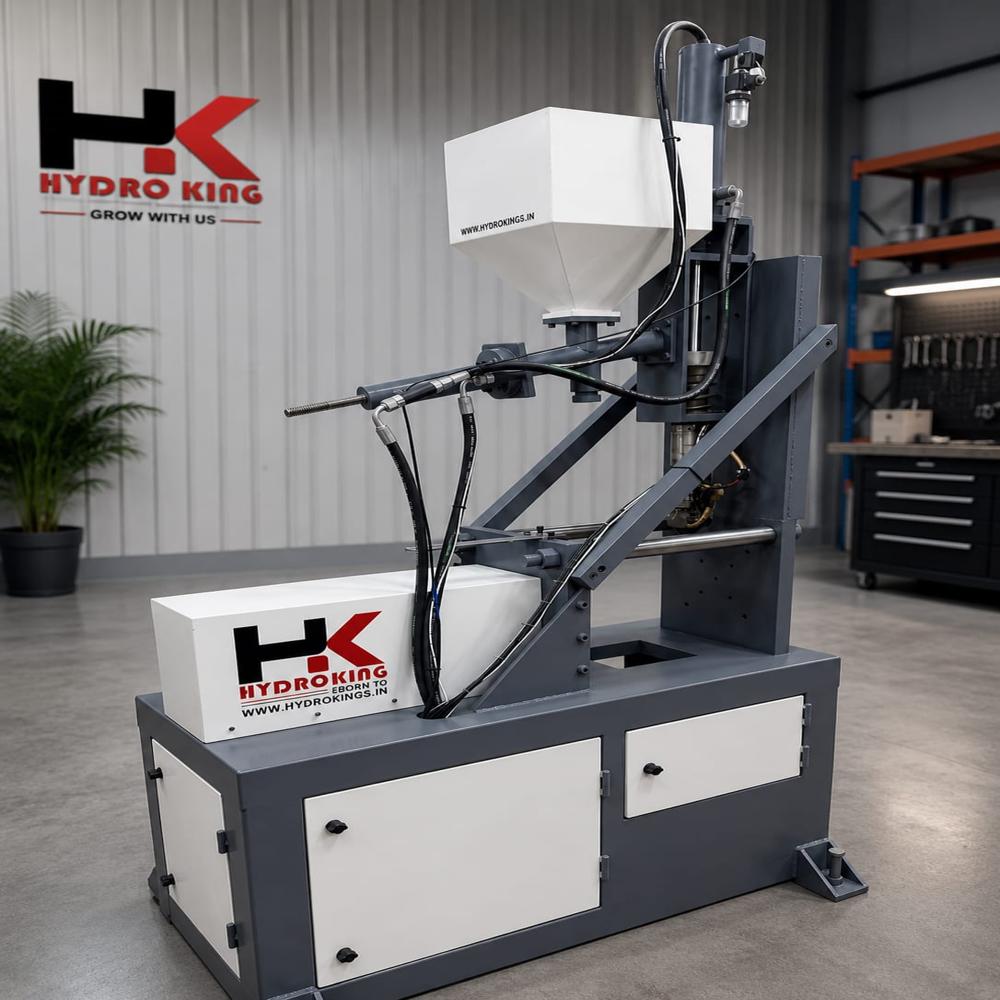

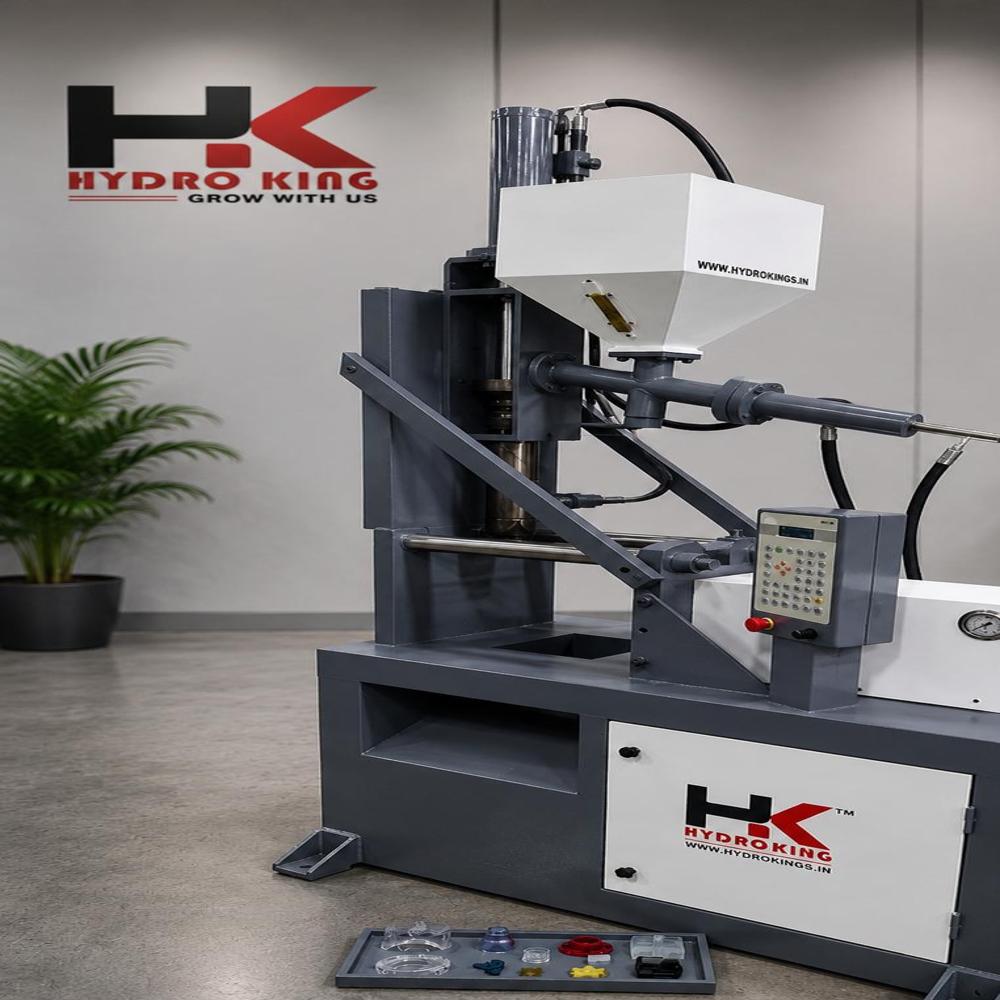

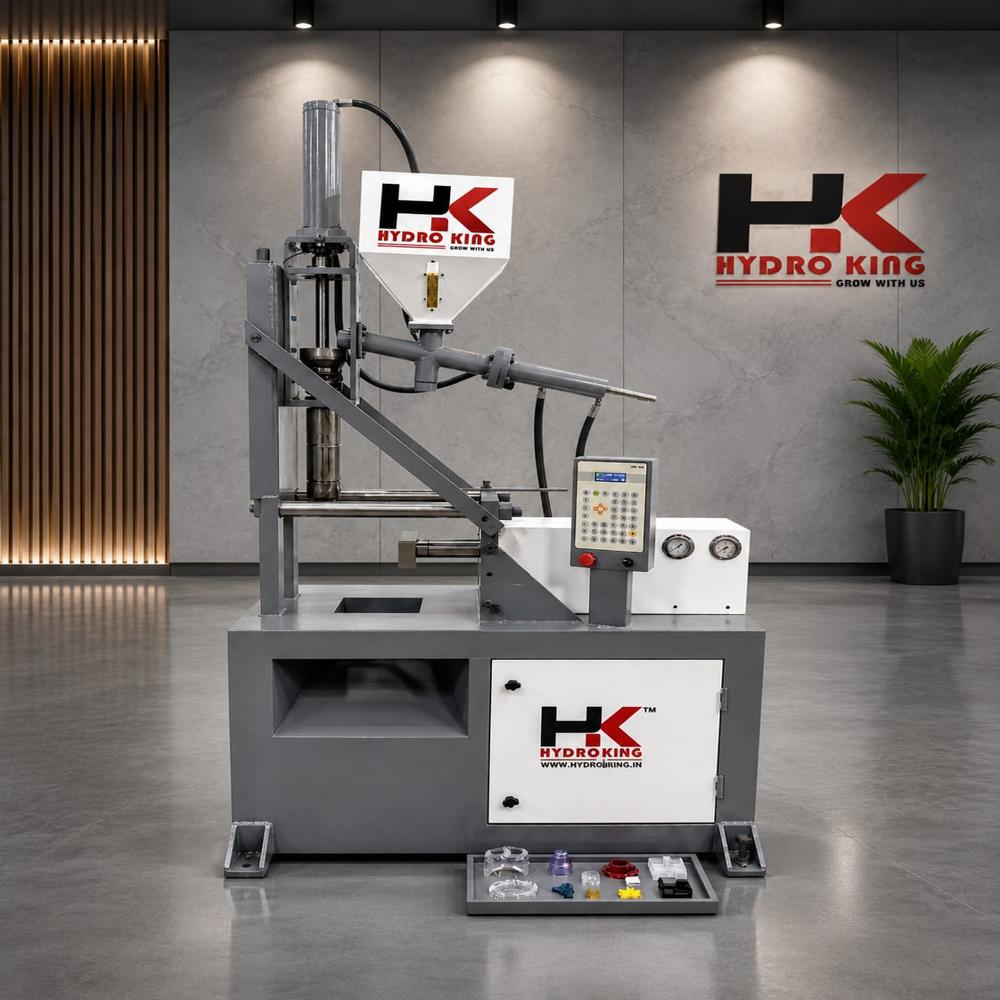

Send InquiryVertical Injection Moulding Machine
Price 350000.0 INR/ Unit
MOQ : 1 Unit
Vertical Injection Moulding Machine Specification
- IP Rating
- IP54
- Warranty
- 12 MONTHS
- Processor Type
- INDUSTRIAL PLC CONTROLLE
- Remote Control
- Yes
- Speed Range
- 0-200MM/S(ADJUSTABLE)
- Frequency
- 50 Hertz (HZ)
- Connectivity Type
- PLC+HMI
- Automation Grade
- AUTOMATIC
- Weight
- 900-1000 Kilograms (kg)
- Application
- PLASTIC INJECTION MOULDING/INSERT MOULDING
- Control Type
- PLC
- Screen Size
- 7 Inch (in)
- Load Capacity
- 20 Tonne
- Phase
- 3
- Mounting Type
- FLOOR
- Features
- Servo Energy Saving, PLC + HMI Control, High Precision, Low Noise, Automatic Lubrication, Fast Cycle Time
- Cable Length
- 2 Meter (m)
- Drive Type
- HYDRAULIC SERVO DRIVE
- Sensor Type
- PROXIMITY & TEMPERATUREF
- Usage
- PLASTIC INJECTION MOULDING & INSERT MOULDING
- Material
- MILD STEEL FABRICATED
- Power
- 5500 Watt (w)
- Size
- 20 TON
- Temperature
- 0-300 Celsius (oC)
- Height
- 2600 Millimeter (mm)
- Voltage
- 415 Volt (v)
- Product Type
- VERTICAL
- Color
- GREY & WHITE
- Length
- 1800 Millimeter (mm)
- Width
- 1800 Millimeter (mm)
Vertical Injection Moulding Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 10 Days
About Vertical Injection Moulding Machine
Technical Specifications
Machine Model
HK2015 Automatic
Machine Type
Vertical Plunger Type Injection Moulding Machine
Locking System
Ram Type Locking System
Plunger Diameter
40 mm
Injection Pressure
Maximum 7 Ton
Maximum Shot Weight
150 Gram
Plunger Stroke
300 mm
Temperature Zones
3 Zones
Hopper Capacity
15 kg
Clamping Force
20 Ton
Opening Force
Maximum 7 Ton
Distance Between Tie Bars
310 mm
Minimum Mould Height
100 mm
Maximum Mould Height
250 mm
Opening Stroke
400 mm
Nozzle Retraction Stroke
820 mm
Maximum Open Daylight
400 mm
Ejector Stroke
10100 mm
Injection Unit Slide Stroke
160 mm
Maximum Hydraulic Pressure
175 Bar
Pump Output
9 LPM
Hydraulic Oil Capacity
108 Litres
Pump Motor
Single Phase, 3 HP
Barrel Heating Power
2 KW
Total Electric Load
4.5 KW
Current Requirement
28 Amp
Machine Weight
Approximately 650 kg
Ejector Force
6 Ton
Machine Dimensions
3090 800 4040 mm
