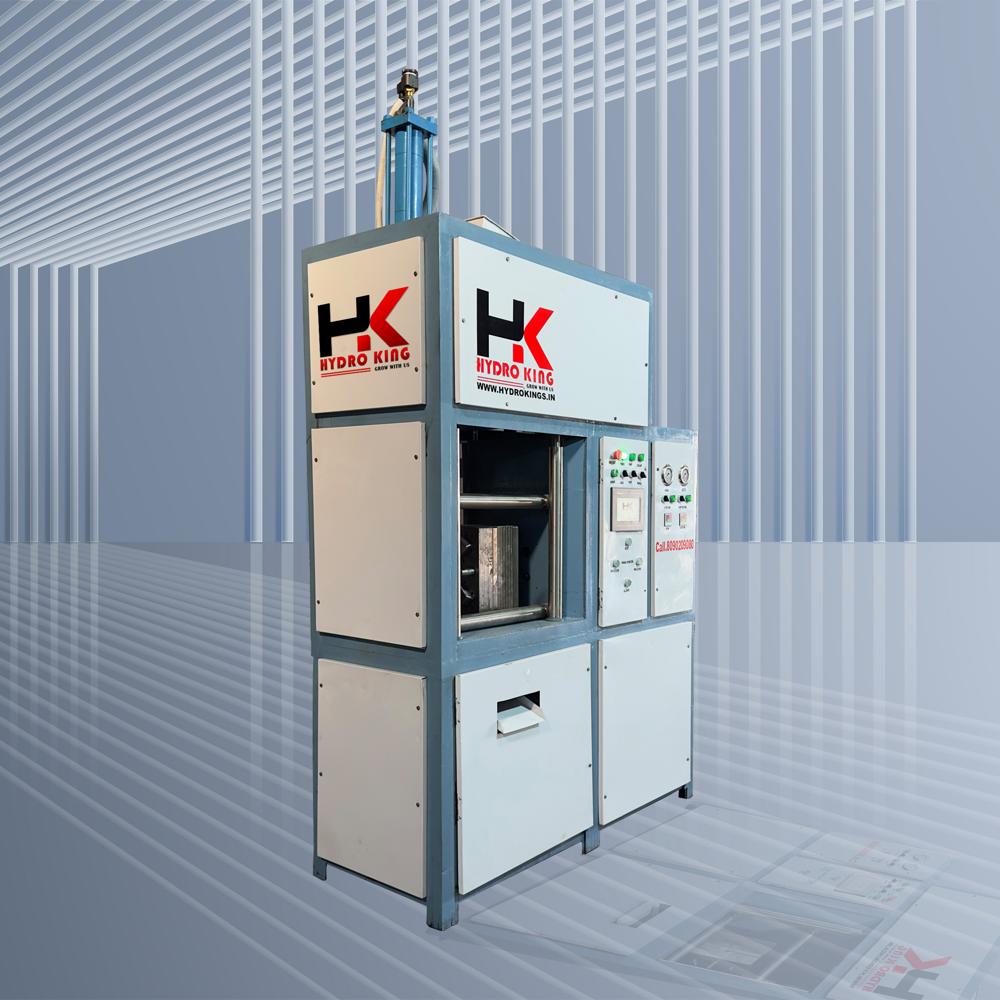

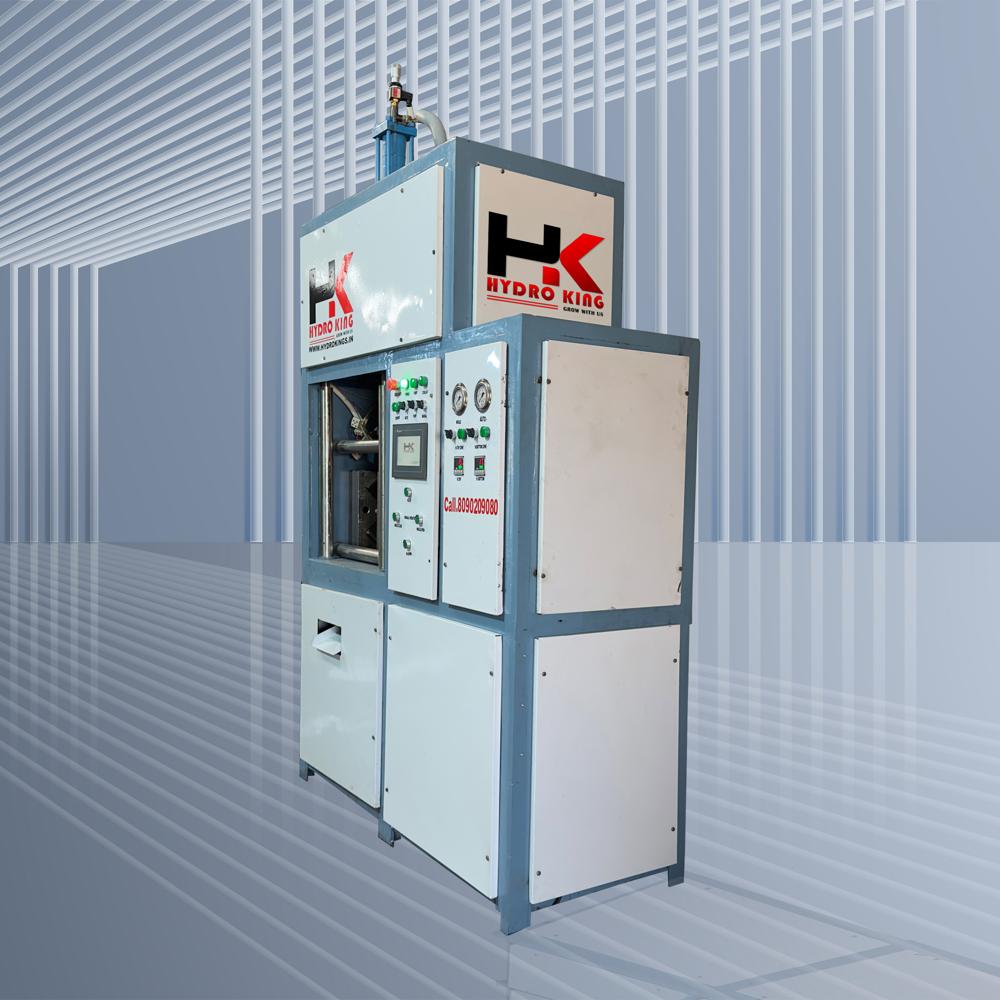

HK1315 AUTOMATIC MACHINE

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Ton

HK1315 AUTOMATIC MACHINE Specification

Warranty
12 MONTHS

Connectivity Type
WIRED

Automation Grade
FULLY AUTOMATIC

IP Rating
IP54

Cable Length
2 Meter (m)

Drive Type
HYDRAULIC DRIVE

Sensor Type
PROXIMITY

Features
Automatic Operation, Ram Type Locking System, High Precision, Heavy Duty Construction, Low Maintenance, Energy Efficient

Control Type
PLC

Application
PLASTIC INJECTION MOULDING

Speed Range
ADJUSTABLE INJECTION

Weight
650 Kilograms (kg)

Processor Type
PLC

Remote Control
Yes

Mounting Type
FLOOR MOUNTED

Frequency
50 Hertz (HZ)

Phase
SINGLE

Load Capacity
150 Gram (g)

Screen Size
7 Inch (in)

Usage
PLASTIC INJECTION MOULDING

Material
MILD STEEL

Power
4.5 Watt (w)

Size
3090X800X4040mm

Temperature
300 Celsius (oC)

Height
4040 Millimeter (mm)

Product Type
VERTICAL PLUNGER TYPE INJECTION MOULDING MACHINE

Voltage
230 Volt (v)

Color
GREY & WHITE

Length
3090 Millimeter (mm)

Width
800 Millimeter (mm)

HK1315 AUTOMATIC MACHINE Trade Information

Minimum Order Quantity
1 Ton

Delivery Time
10 Days

About HK1315 AUTOMATIC MACHINE

Technical Specifications

Machine Model: HK1315A

Machine Type: Vertical Plunger Type Injection Moulding Machine

Locking System: Ram Type

Plunger Diameter: 40 mm

Maximum Injection Pressure: 7 Ton

Maximum Shot Weight: 150 Gram

Plunger Stroke: 300 mm

Nozzle Retraction Stroke: 820 mm

Material Hopper Capacity: 15 kg

Temperature Zones: 3

Opening Force: Maximum 7 Ton

Clamping Force: 13 Ton

Distance Between Tie Bars: 310 mm

Minimum Mould Height: 100 mm

Maximum Mould Height: 250 mm

Opening Stroke: 400 mm

Maximum Open Daylight: 400 mm

Ejector Force: 6 Ton

Ejector Stroke: 10100 mm

Injection Unit Slide Stroke: 160 mm

Maximum Hydraulic Pressure: 175 Bar

Pump Output: 9 LPM

Hydraulic Oil Capacity: 108 Litres

Pump Motor: Single Phase, 3 HP

Barrel Heating Power: 2 kW

Total Electric Load: 4.5 kW

Current Requirement: 28 Amp

Machine Weight: Approximately 650 kg

Machine Size: 3090 800 4040 mm

Machine Benefits

The HK1315A offers numerous advantages for manufacturers looking for reliable and efficient plastic moulding solutions.

Its robust ram locking mechanism provides excellent mould stability throughout the injection cycle. Stable clamping pressure reduces flash formation and improves product quality.

The 150-gram injection capacity makes the machine suitable for manufacturing medium-sized plastic products with excellent dimensional accuracy.

Its vertical design occupies less floor space than conventional horizontal machines, making it suitable for factories with limited production areas.

The three-zone barrel heating system ensures uniform plastic melting, resulting in improved surface finish and reduced material wastage.

The machine operates using a reliable hydraulic system capable of generating 175 Bar pressure for smooth and consistent mould filling.

The 13-ton clamping force ensures proper mould locking during injection, helping produce defect-free plastic components.

The single-phase 3 HP motor makes installation easier in locations where three-phase power is not available.

The machine is built with heavy-duty steel construction for long operational life and minimal maintenance.

Its user-friendly controls simplify machine operation, reducing operator training time and improving productivity.

The HK1315A is designed for continuous industrial production with stable performance over extended operating hours.

Applications

The HK1315A is widely used for manufacturing:

Electrical Switch Components

Plug Tops

Socket Components

Electrical Connectors

Cable Clips

Wire Holders

Plastic Caps

Plastic Containers

Plastic Closures

Household Products

Kitchen Accessories

Plastic Knobs

PVC Components

Packaging Products

Medical Plastic Parts

Industrial Plastic Components

Automotive Plastic Parts

Agricultural Plastic Products

Engineering Plastic Components

Custom Plastic Moulded Parts

Suitable Plastic Materials

The HK1315A is compatible with a wide range of thermoplastic materials including:

Polypropylene (PP)

High Density Polyethylene (HDPE)

Low Density Polyethylene (LDPE)

ABS

Nylon (PA)

Polystyrene (PS)

PVC

Polycarbonate (PC)

Acetal (POM)

TPU

TPE

EVA

Acrylic (PMMA)
