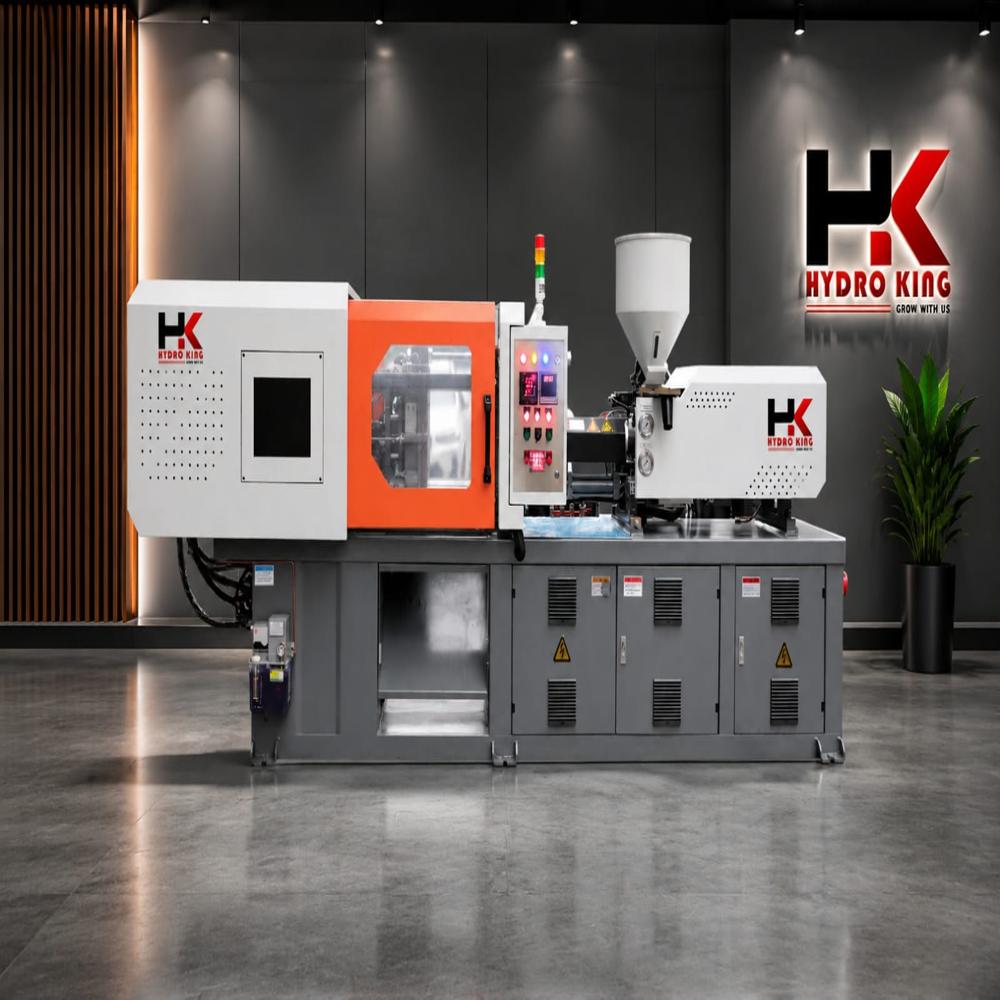

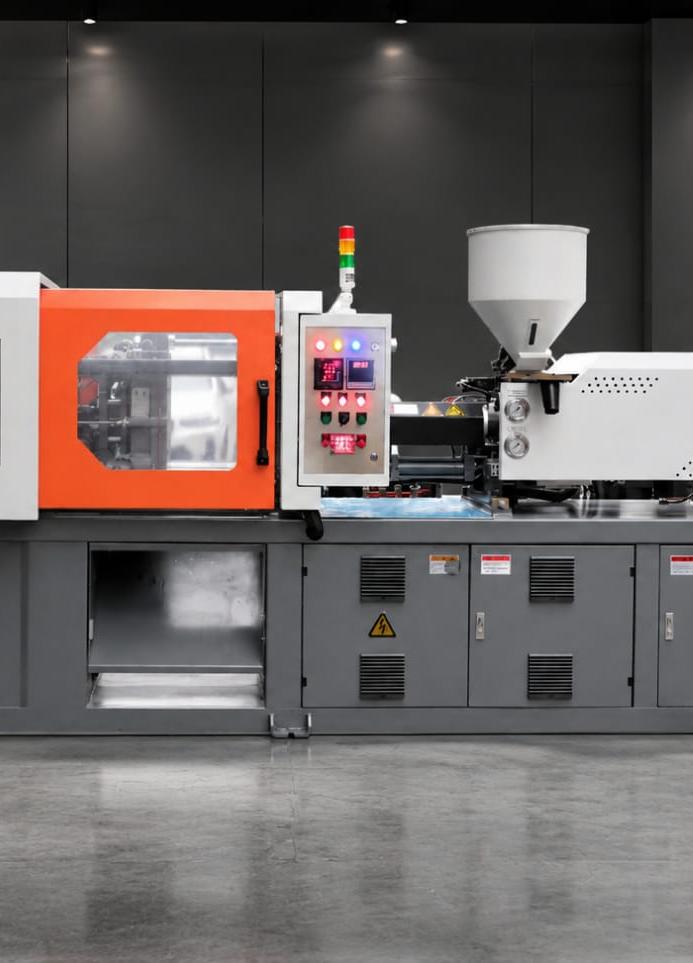

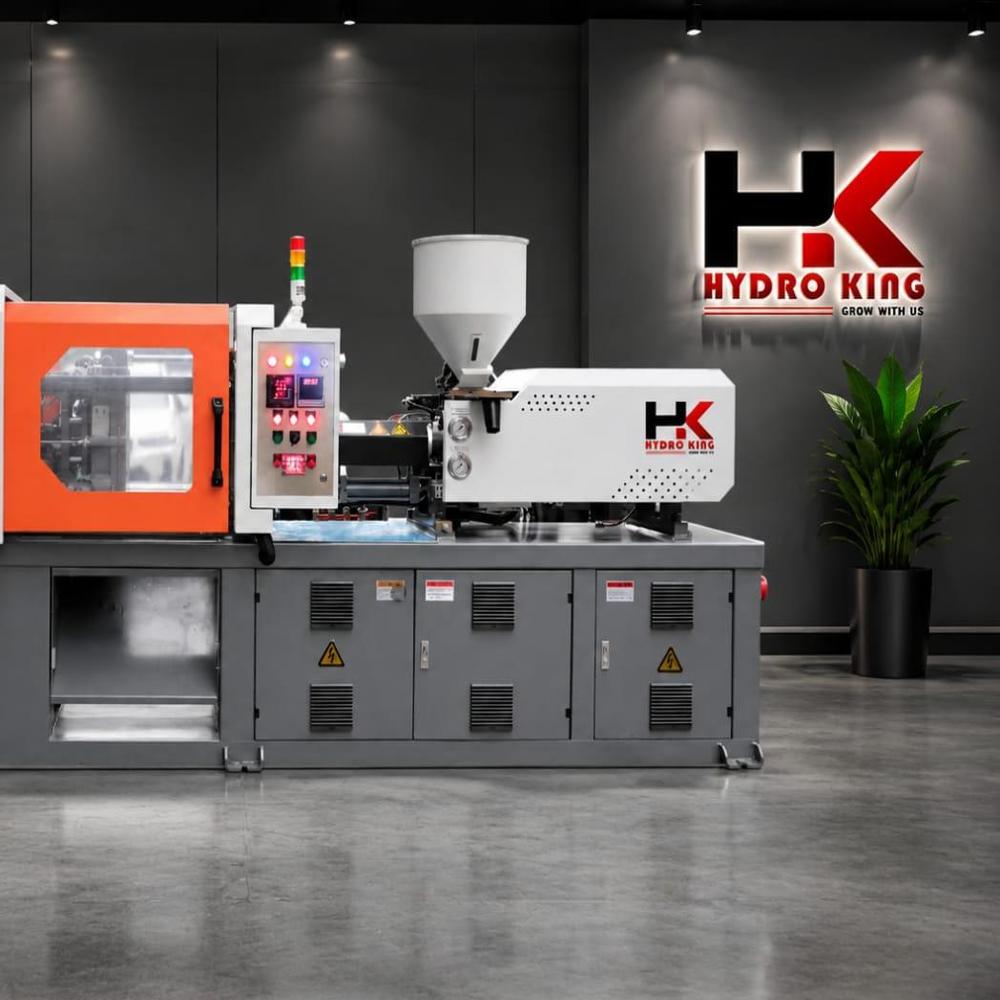

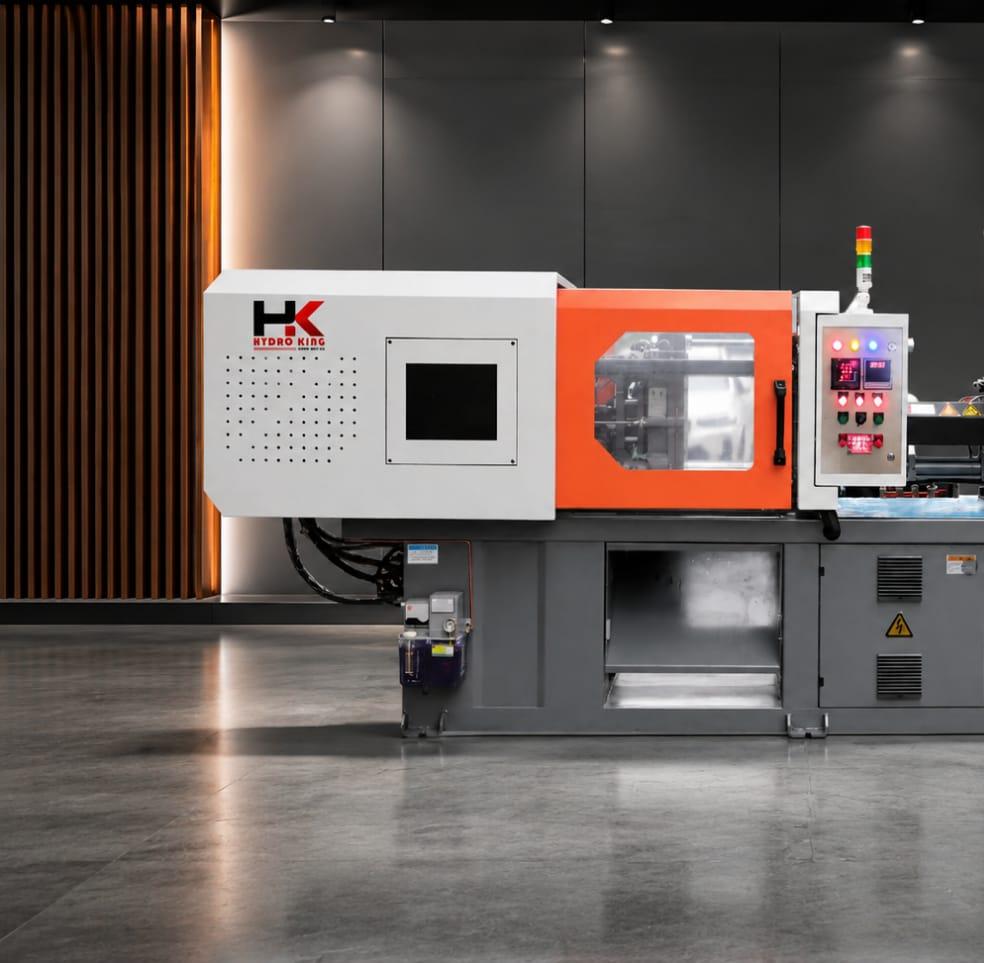

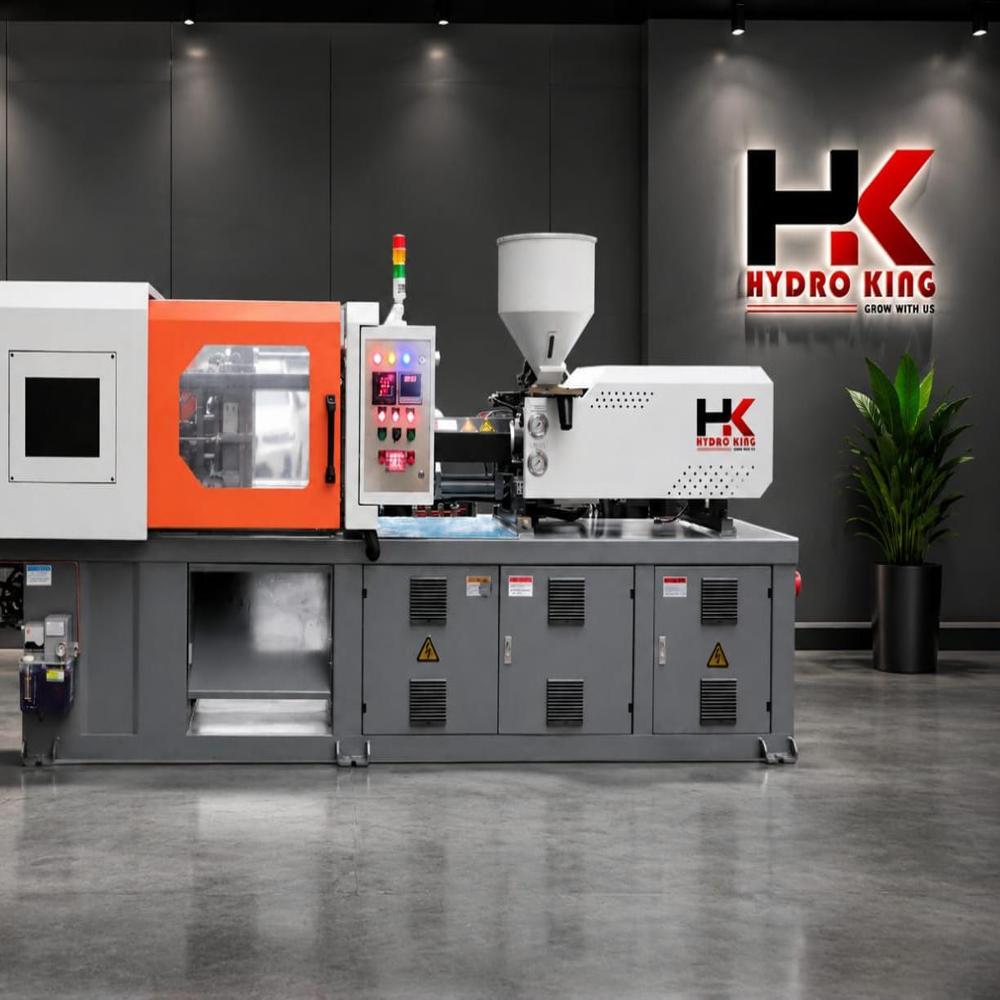

Send InquiryHydroking HK9012 S Horizontal Injection Moulding Machine
Price 1300000.0 INR/ Unit
MOQ : 1 Unit
Hydroking HK9012 S Horizontal Injection Moulding Machine Specification
- Product Type
- Plastic
- General Use
- Household products
- Material
- Carbon Steel
- Type
- Plastic Injection Molding Machine
- Style
- Horizontal
- Capacity
- 90 Ton
- Weight (kg)
- 3 Metric Ton
- Computerized
- Yes
- Automatic
- Yes
- Control System
- PLC Control
- Clamping Force
- 882.6 KN Kilonewton (kN)
- Mold Thickness
- 450 Millimeter (mm)
- Ejector Stroke
- 120 Millimeter (mm)
- Ejector Force
- 4 Kilonewton (kN)
- Injection Rate
- 240 sq cm/s
- Injection Pressure
- 160 Bar
- Screw Diameter
- 35 Millimeter (mm)
- Screw Torque
- 190 kgf-mm
- Tie Bar Size
- 400X400
- Screw Stroke
- 190MM
- Opening Stroke
- 350 Millimeter (mm)
- Heating Power
- 7 Kilowatt (kW)
- Fuel Tank Capacity
- 290 Liter (L)
- Pump Pressure
- 160 Bar
- Voltage
- 17 Volt (v)
- Dimension (L*W*H)
- 4600X1100X2200 Millimeter (mm)
- Feature
- ECO Friendly, Low Noise, Lower Energy Consumption, Smooth Running, High Speed Response, High Performance
- Color
- GREY,WHITE
- Warranty
- 12 months
Hydroking HK9012 S Horizontal Injection Moulding Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 10 Days
Hydroking HK9012 S Horizontal Injection Moulding Machine About
Hydroking HK9012 Servo Horizontal Injection Moulding Machine
Technical Specifications
Specification Details
Model-HK9012 Servo
Machine Type-Horizontal Servo Injection Moulding Machine
Clamping Force-90 Tons
Screw Diameter-35 mm
Shot Capacity-120 Grams
Screw Speed-200-300 RPM
Screw Stroke-190 mm
Opening Stroke-350 mm
Space Between Tie Bars-400 400 mm
Maximum Daylight-750 mm
Mould Height Range-150-400 mm
Ejector Stroke-120 mm
Ejector Force-4 Tons
Toggle Type-H-Type Toggle
Maximum Pump Pressure-160 Bar
Total Load-17 kW
Servo Motor Power-10 kW
Flow Capacity-50 LPM
Non-Servo Motor Power-10 HP
Heating Zones-5 + 1
Heating Power-7 kW
Oil Tank Capacity-290 Litres
Machine Dimensions-4600 1100 2200 mm
Approximate Weight-3 Tons
